Following Electricity 器 Lose Out 参 number |
aisle | 3-way type A, 3-way type C |
|---|---|---|
| Breakdown voltage | 750Vac (50/60Hz 1min) | |
| Contact load (resistance) | Type A: 5A @ 250Vac/30Vdc; Type C: 10A @ 250Vac/30Vdc | |
| Insulation resistance | 1G Europe.Min @500Vdc | |
| Break time | Less than 10ms | |
| Operating speed | 6 times / minute |
|
Master Board 参 number |
operating system | FreeRTOS |
|---|---|---|
| Processor | STM32 (Cortex-M3) | |
| Processor speed | 72MHz | |
| LED indicator | Power light, communication light, channel light | |
| Watchdog | System watchdog, communication watchdog (programmable) | |
| Protective function | Overcurrent, overvoltage, overtemperature, anti-reverse | |
| Communication Interface | RS485 terminal block | |
| Upgrade program interface | Built-in MiniUSB | |
| letter of agreement | Modbus-RTU/ASCII |
|
Machine Structure And Ring 境 参 number |
shell material | ABS plastic |
|---|---|---|

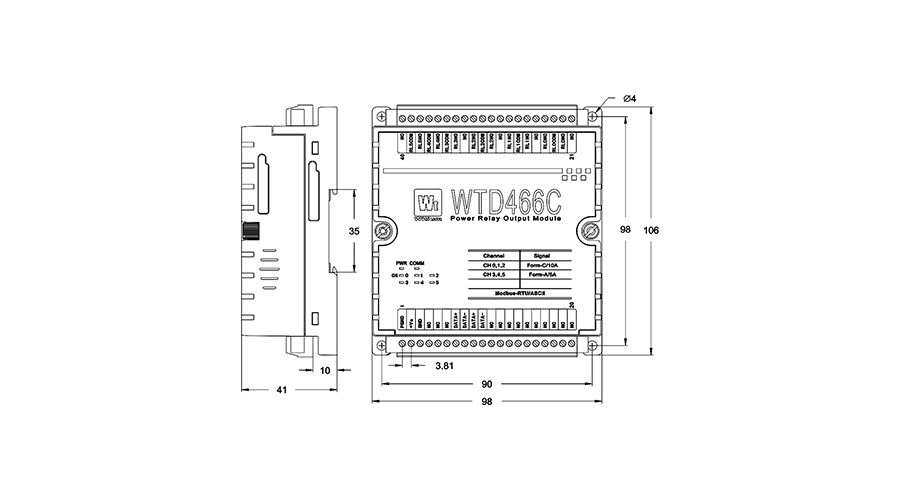

| Dimensions | 98×106×41mm | |
| Rail support | DIN35mm | |
| power input | 10 to 48V (24Vdc rated) | |
| Power consumption | ~1.8W (24Vdc) | |
| Operating temperature | -20 to 70 ° C | |
| Storage temperature | -30~80°C | |
| Humidity | 10 to 90% RH (non-condensing) | |
| Weight | ~0.3Kg | |
| Certification and testing | EMC (EN61000-6-2/4), safety regulations | |
| Parameter setting software | WTDUtility |
